Semi-integrated Headsets

Semi Integrated Headset Sealed Bearings

H

ZS44/28.6 | ZS44/30

➤ Alloy Cap/Cup
➤ Sealed Bearings
➤ Top Nut: 1-1/8″
➤ Cup O.D.: 44
➤ Crown Cone: 30
➤ Height: 13

Technical Diagram

Semi Integrated Headset Cartridge Bearings

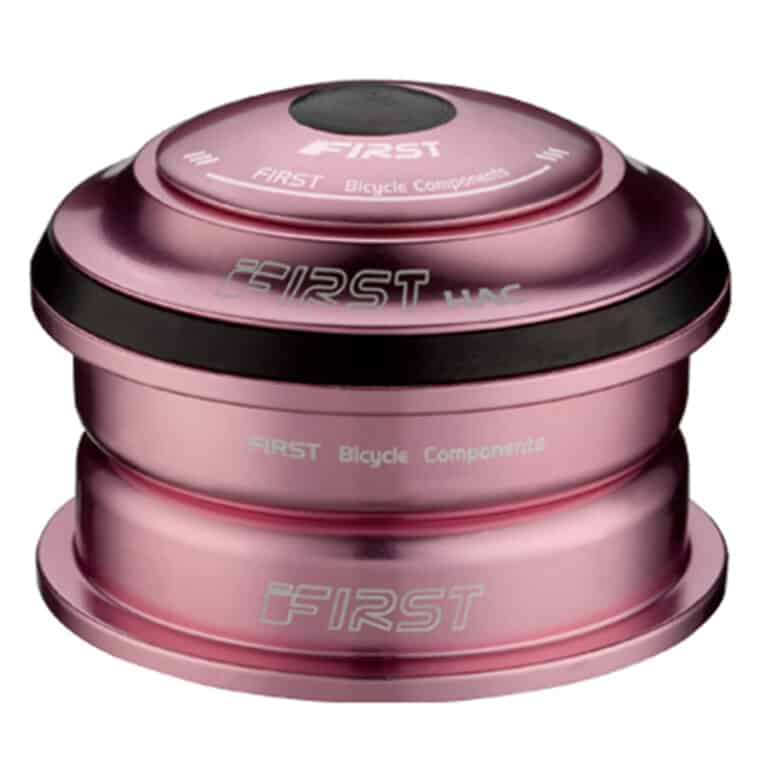

HAC

ZS44/28.6 | ZS44/30

➤ Alloy Cap/Cup
➤ Cartridge Bearings
➤ Top Nut: 1-1/8″
➤ Cup O.D.: 44
➤ Crown Cone: 30
➤ Height: 13.9

Technical Diagram

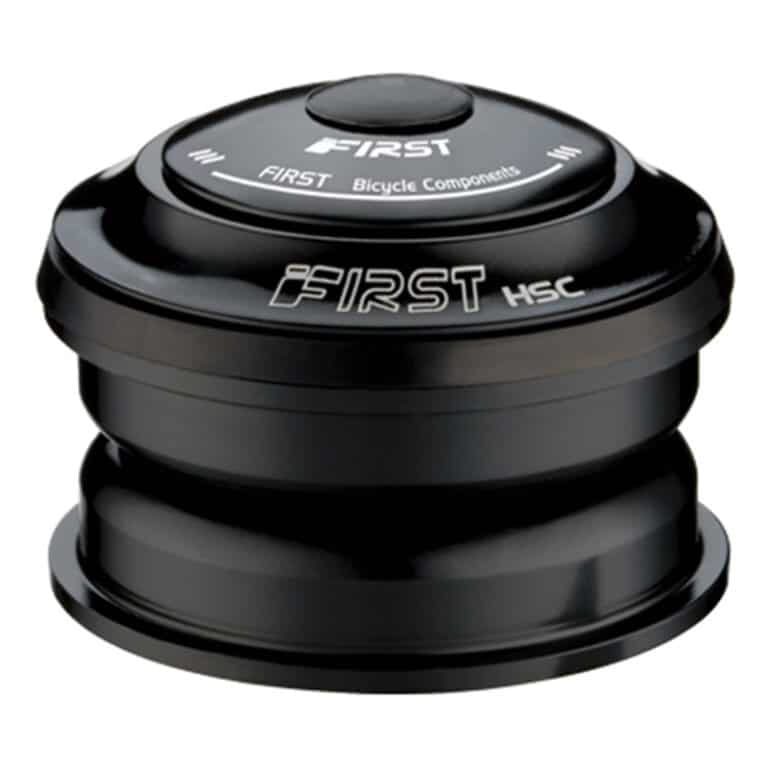

Semi Integrated Headset Cartridge Bearings

HSC

ZS44/28.6 | ZS44/30

➤ Alloy Cap/Steel Cup
➤ Cartridge Bearings
➤ Top Nut: 1-1/8″
➤ Cup O.D.: 44
➤ Crown Cone: 30
➤ Height: 13

Technical Diagram

Semi Integrated Headset Sealed Bearings

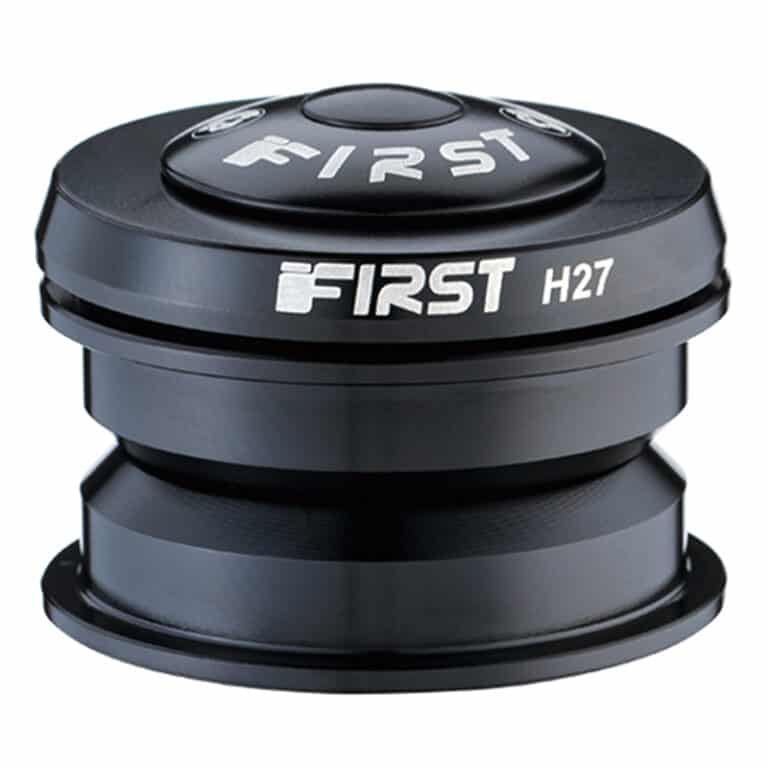

H27

ZS44/28.6 | ZS44/30

➤ Alloy Cap/Cup
➤ Sealed Bearings
➤ Top Nut: 1-1/8″
➤ Cup O.D.: 44
➤ Crown Cone: 30
➤ Height: 11.9

Technical Diagram

Semi Integrated Headset Sealed Bearings

P502A

ZS44/28.6 | ZS44/30

➤ Alloy Cap/Cup
➤ Sealed Bearings
➤ Top Nut: 1-1/8″
➤ Cup O.D.: 44
➤ Crown Cone: 30
➤ Height: 4.2

Technical Diagram

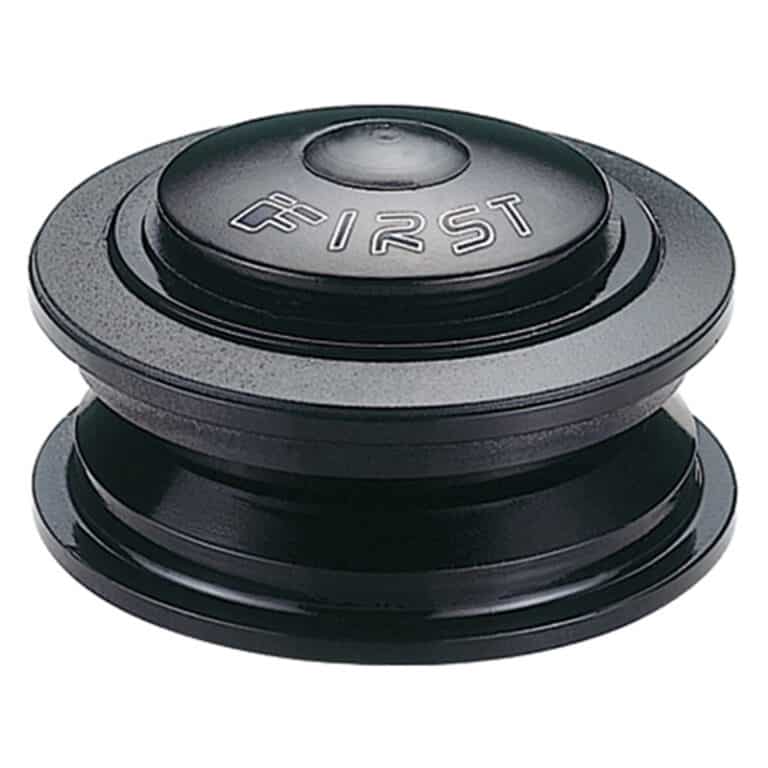

Semi Integrated Headset Ball Retainers

C

ZS44/28.6 | ZS44/30

➤ Nylon Cap/Steel Cup
➤ Ball Retainers
➤ Top Nut: 1-1/8″
➤ Cup O.D.: 44
➤ Crown Cone: 30
➤ Height: 9.1

Technical Diagram

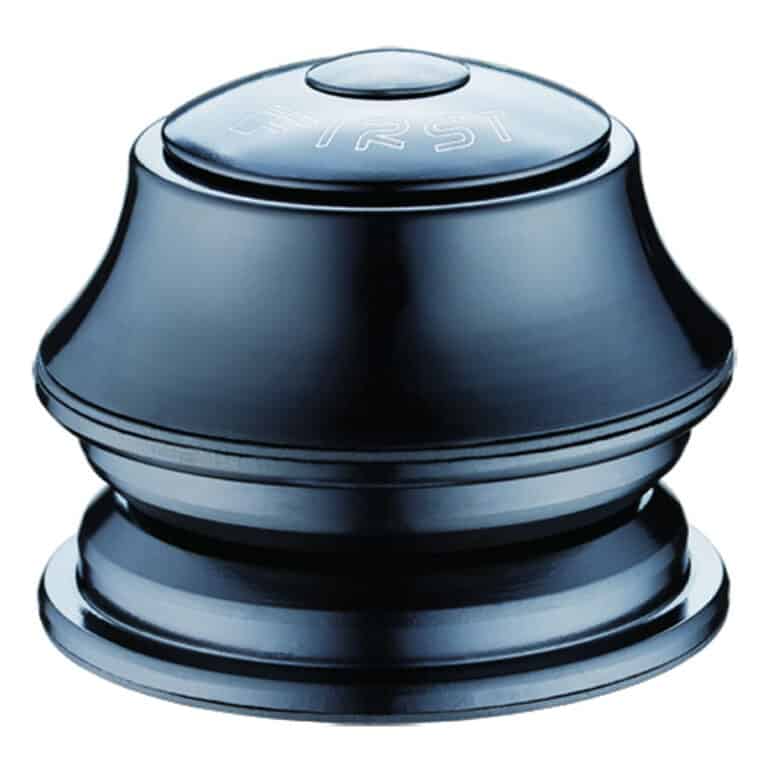

Semi Integrated Headset Ball Retainers

CWN

ZS44/28.6 | ZS44/30

➤ Nylon Cap/Steel Cup
➤ Ball Retainers
➤ Top Nut: 1-1/8″
➤ Cup O.D.: 44
➤ Crown Cone: 30
➤ Height: 22.4

Technical Diagram

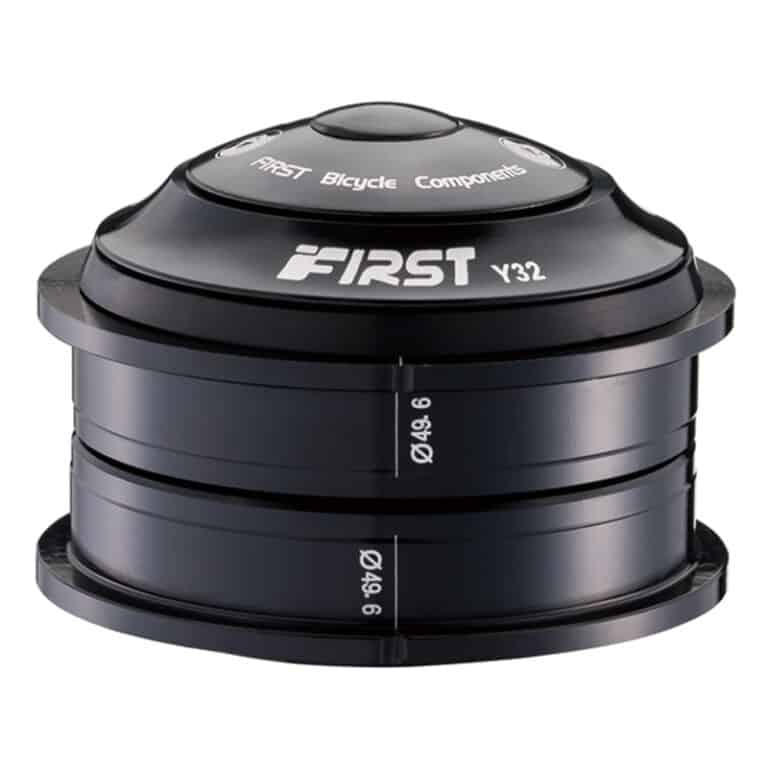

Semi Integrated Headset Sealed Bearings

Y32 (1°/1.5°/2°)

ZS49/28.6 | ZS49/30

➤ Alloy Cap/Cup
➤ Sealed Bearings
➤ Angle Adjustable
➤ ± 1°/1.5°/2°
➤ Top Nut: 1-1/8″
➤ Cup O.D.: 49.6
➤ Crown Cone: 30
➤ Height: 14.2

Technical Diagram

Semi Integrated Headset Angle Limited

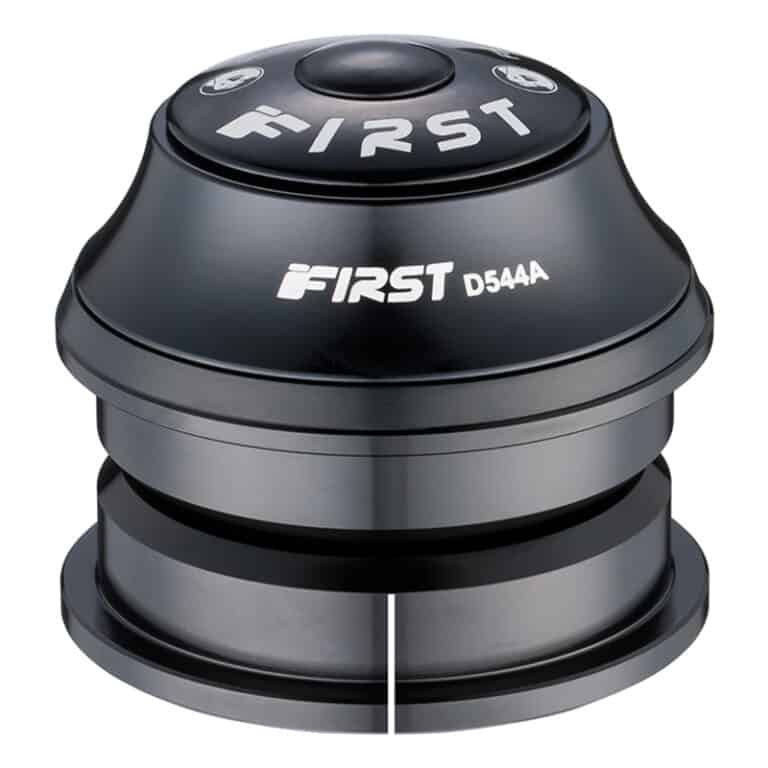

D544A

ZS44/28.6 | ZS44/30

➤ Alloy Cap/Cup
➤ Sealed Bearings
➤ Angle Limited Headset
➤ Top Nut: 1-1/8″
➤ Cup O.D.: 44
➤ Crown Cone: 30
➤ Height: 20.4

Technical Diagram

Semi Integrated Headset Angle Limited

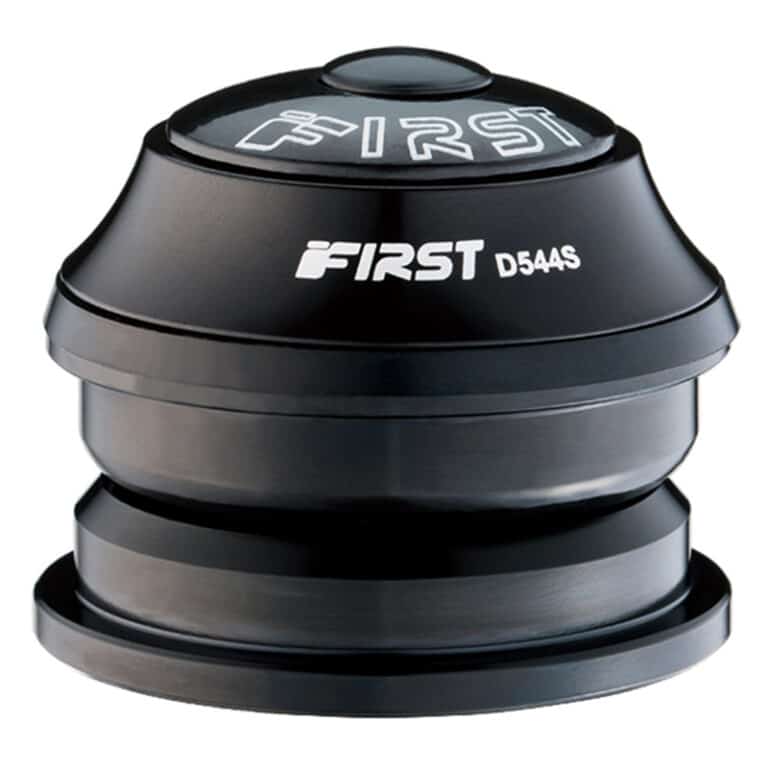

D544S

ZS44/28.6 | ZS44/30

➤ Alloy Cap/Steel Cup
➤ Cartridge Bearing
➤ Ball Retainer
➤ Angle Limited Headset
➤ Top Nut: 1-1/8″
➤ Cup O.D.: 44
➤ Crown Cone: 30
➤ Height: 19

Technical Diagram

Semi Integrated Headset Ball Retainers

G

ZS44/28.6-26tpi | ZS44/30

➤ Steel
➤ Ball Retainers
➤ Top Nut: 25.4
➤ Cup O.D.: 44
➤ Crown Cone: 30
➤ Height: 19.5


Technical Diagram

Semi Integrated Headset Angle Limited

D560S

ZS44/28.6-26tpi | ZS44/30

➤ Steel
➤ Ball Retainers
➤ Angle Limited Headset
➤ Top Nut: 25.4
➤ Cup O.D.: 44
➤ Crown Cone: 30
➤ Height: 21.5

Technical Diagram
