Road Bike Cranksets

Gravel Bike Crankset

GTm

for Gravel Bikes

➤ Upgraded Compact Crankset
➤ Cranks: Forged AL 6066
➤ Length: 165mm, 170mm, 172.5mm, 175mm
➤ BCD: 130/74mm
➤ Chainrings: 48Tx32T, 46Tx36T, 46Tx30T (AL7075)
➤ Spindle: Cr-Mo SCM440
➤ Speed: 10/11
➤ Chainline: 43.5mm
➤ Weight: 845g ± 10g/175mm (BB Not Included)

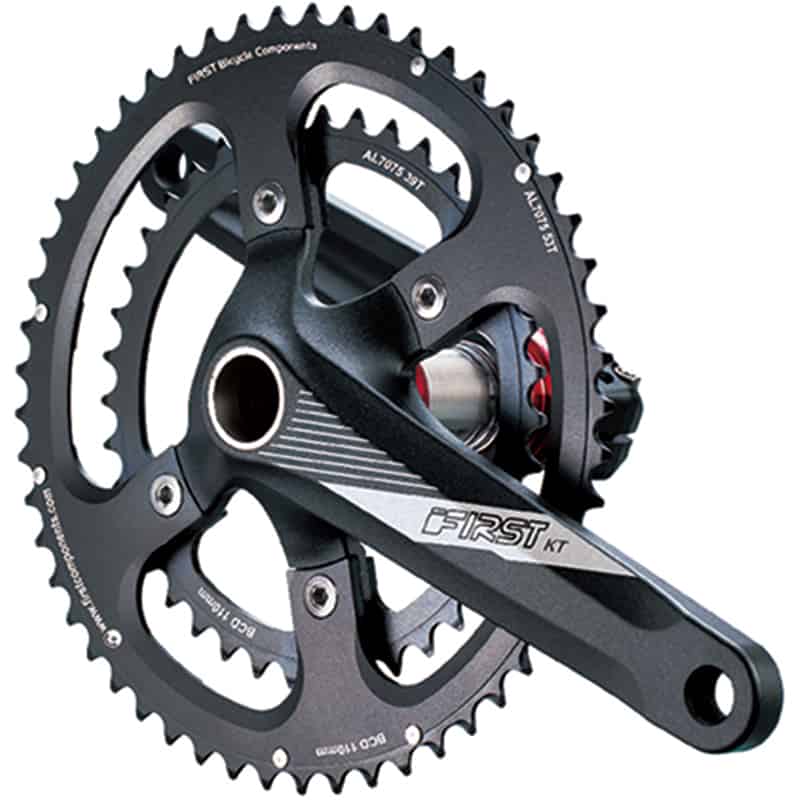

Road Bike Crankset 4 arm

KT

4 -Arm

➤ Cranks: Forged AL6066
➤ Length: 165mm, 170mm, 172.5mm, 175mm
➤ BCD: 110mm
➤ Chainrings: 53Tx39T, 50Tx34T, 52Tx36T, 52Tx38T (AL7075)
➤ Spindle: Cr-Mo SCM440
➤ Speed: 10/11
➤ Chainline: 43.5mm
➤ Weight: 840g ± 10g/175mm (BB Not Included)

Technical Diagram

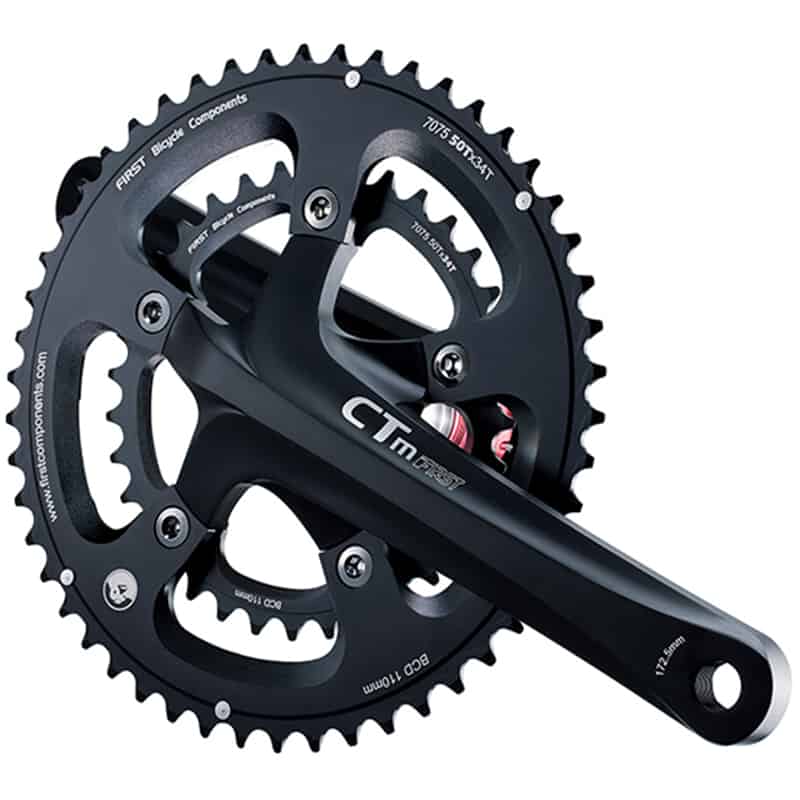

Road Bike Compact Crankset

CTm

Compact Crankset

➤ Cranks: Forged AL7050
➤ Length: 165mm, 170mm, 172.5mm, 175mm
➤ BCD: 110mm
➤ Chainrings: 50Tx34T (AL7075)
➤ Spindle: Cr-Mo SCM440
➤ Speed: 10/11
➤ Chainline: 43.5mm
➤ Weight: 864g ± 10g/175mm (BB Not Included)

CTm86-for Press-Fit BB86 W/Spindle Ø24
CTm30-for External Threaded BB W/Alloy Spindle Ø30
CTmF30-for Press-Fit BB W/Alloy Spindle Ø30

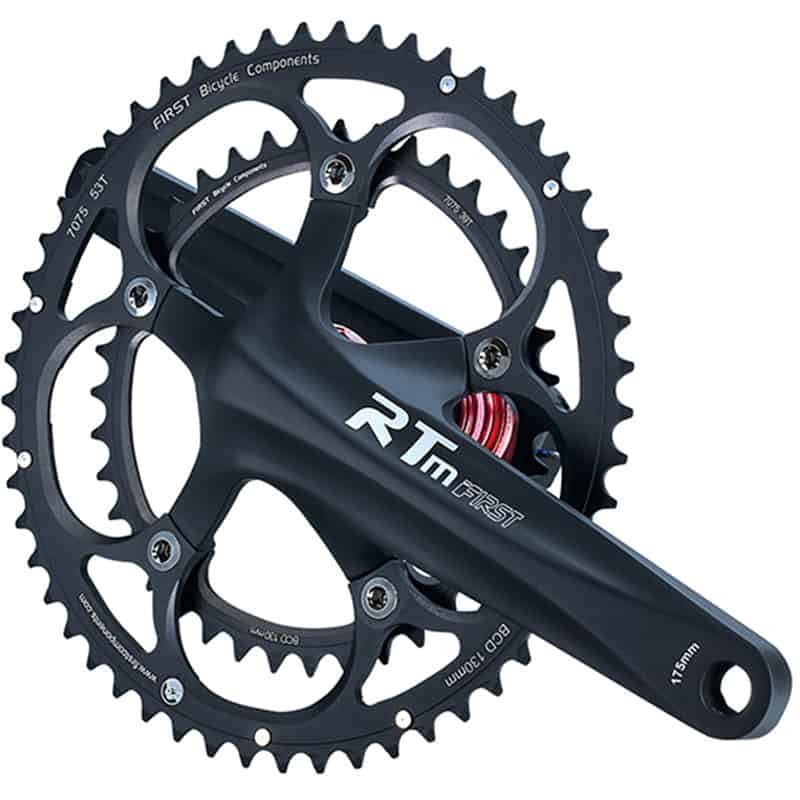

Road Bike Crankset

RTm

➤ Cranks: Forged AL7050
➤ Length: 165mm, 170mm, 172.5mm, 175mm
➤ BCD: 130mm
➤ Chainrings: 53Tx39T, 55Tx42T (AL7075)
➤ Spindle: Cr-Mo SCM440
➤ Speed: 10/11
➤ Chainline: 43.5mm
➤ Weight: 810g ± 10g/175mm (BB Not Included)

RTmF86-for Press-Fit BB86 W/Spindle Ø24

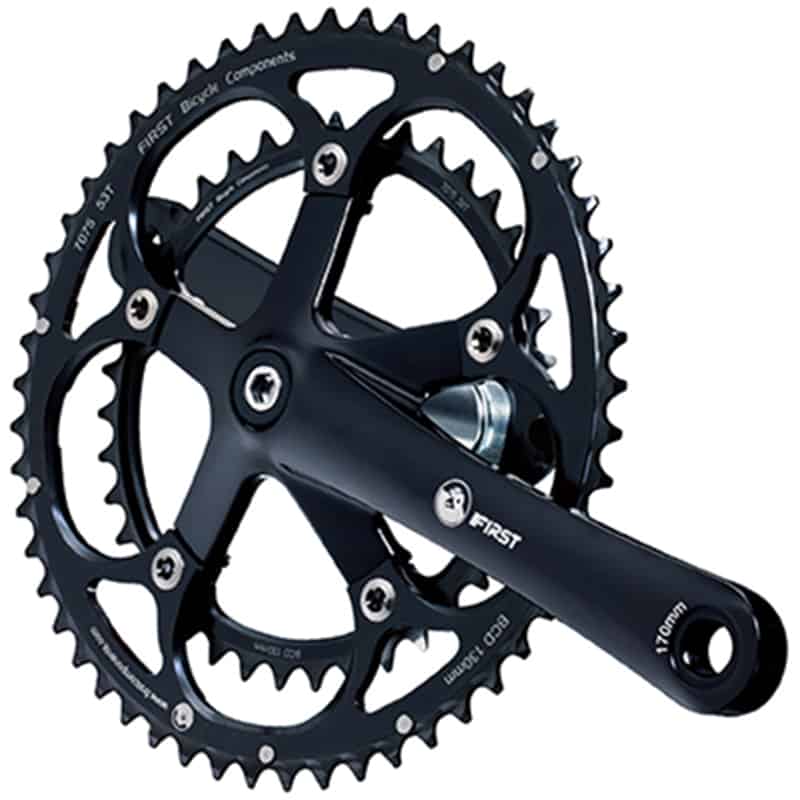

Road Bike Crankset

DT

Chainring CNC Production

➤ Cranks: Forged AL6061 with Polish Anodized Silver/Black Finish
➤ Length: 165mm, 170mm, 172.5mm, 175mm
➤ BCD: 130mm
➤ Chainrings: 53Tx39T, 52Tx42T (AL7075)
➤ Speed: 10/11
➤ Weight: 700g /175mm (BB Not Included)

DA
BCD: 110mm
➤ Chainrings: 46Tx34T

Road Bike Crankset Semi Oval

OS

Semi-Oval

➤ Cranks: Forged AL7050
➤ Length: 165mm, 170mm, 172.5mm, 175mm
➤ BCD: 130mm
➤ Chainrings: 53Tx39T (AL7075)
➤ Spindle: Cr-Mo SCM440
➤ Speed: 10/11
➤ Chainline: 43.5mm
➤ Weight: 950g ± 10g/175mm (BB Not Included)

OS1
➤ BCD: 110mm
➤ Chainrings: 50Tx34T (AL7075)

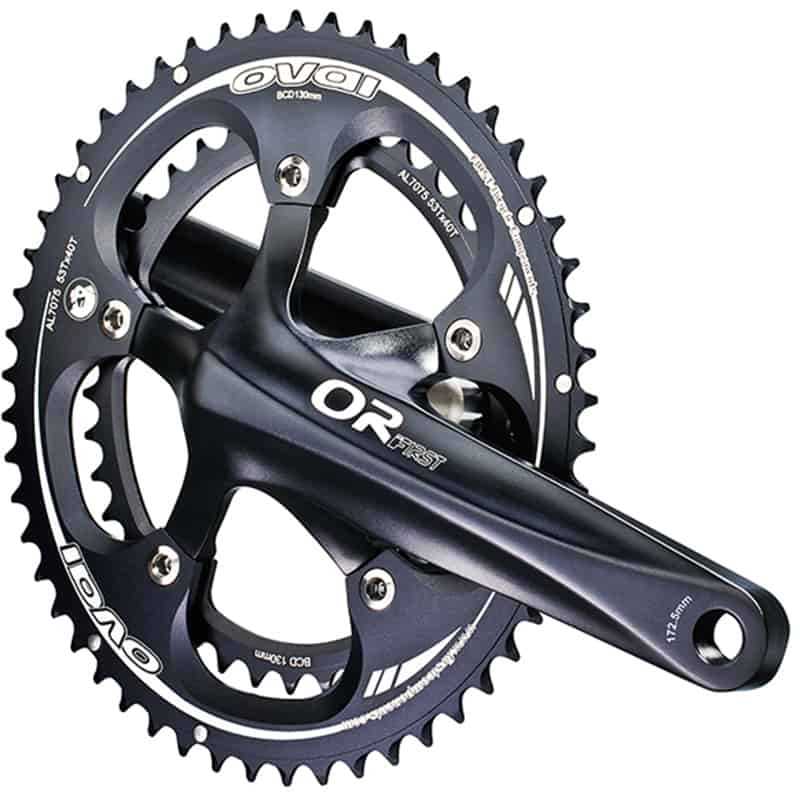

Road Bike Crankset Semi Oval

OR

➤ Cranks: Forged AL7050
➤ Length: 165mm, 170mm, 172.5mm, 175mm
➤ BCD: 130mm
➤ Oval Chainrings: 53Tx40T (AL7075)
➤ Spindle: Cr-Mo SCM440
➤ Speed: 10/11
➤ Chainline: 43.5mm
➤ Weight: 950g ± 10g/175mm (BB Not Included)

Road Bike Crankset

OC

➤ Cranks: Forged AL7050
➤Length: 165mm, 170mm, 172.5mm, 175mm
➤ BCD: 110mm
➤ Oval Chainrings: 50Tx35T (AL7075)
➤ Spindle: Cr-Mo SCM440
➤ Speed: 10/11
➤ Chainline: 43.5mm
➤ Weight: 982g ± 10g/175mm (BB Not Included)
