CARTRIDGE BB SETS

DX-60A

➤ SCM Hollow ISIS Drive Spindle
➤ Alloy Cups and Sleeve
➤ 2 Sealed Bearings
➤ BSA

Technical Diagram

MP-61

➤ SCM Hollow ISIS Drive Spindle
➤ Aluminum Alloy Cups and Sleeve
➤ Double-Row 14mm Sealed Bearings
➤ Length 68 x 108mm, 113mm, 118mm, 122mm and 128mm
➤ Length 73 x 108mm, 113mm, 118mm, 122mm and 128mm
➤ Weight: 265g

Technical Diagram

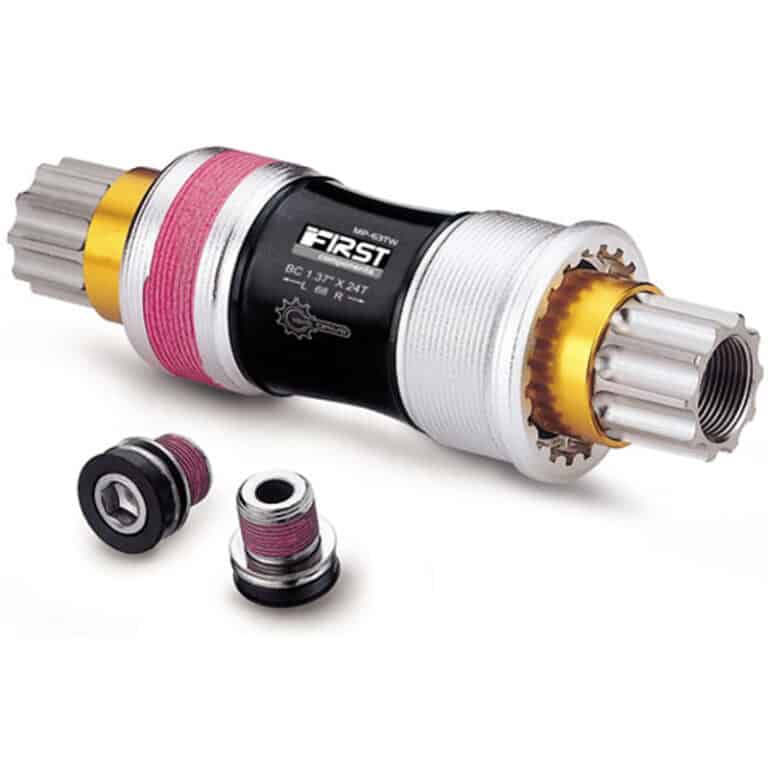

MP-63TW

➤ Titanium Hollow ISIS Drive Spindle
➤ Aluminum Alloy Cups and Sleeve
➤ Double-Row 14mm Sealed Bearings
➤ Length 68 x 108mm, 113mm, 118mm, 122mm and 128mm
➤ Length 73 x 108mm, 113mm, 118mm, 122mm and 128mm
➤ Weight: 190g

Technical Diagram

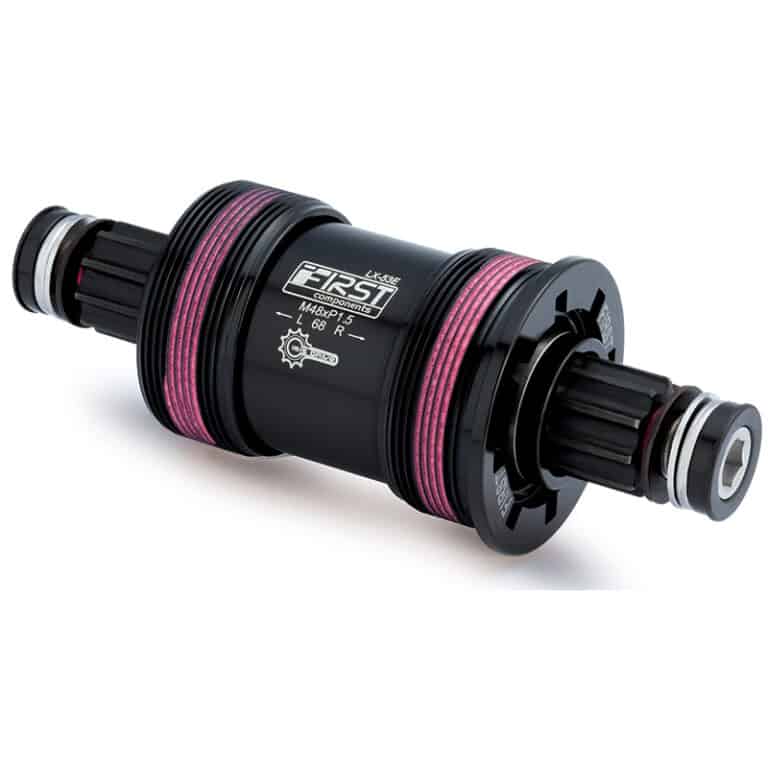

LX-53E

➤ ISIS Drive SCM Spindle
➤ Sealed Bearings Type
➤ SCM Crank Bolts
➤ Oversized Threaded Cups (M48)
➤ Length 68 x 113mm, 118mm and 128mm
➤ Weight: 544g

Technical Diagram

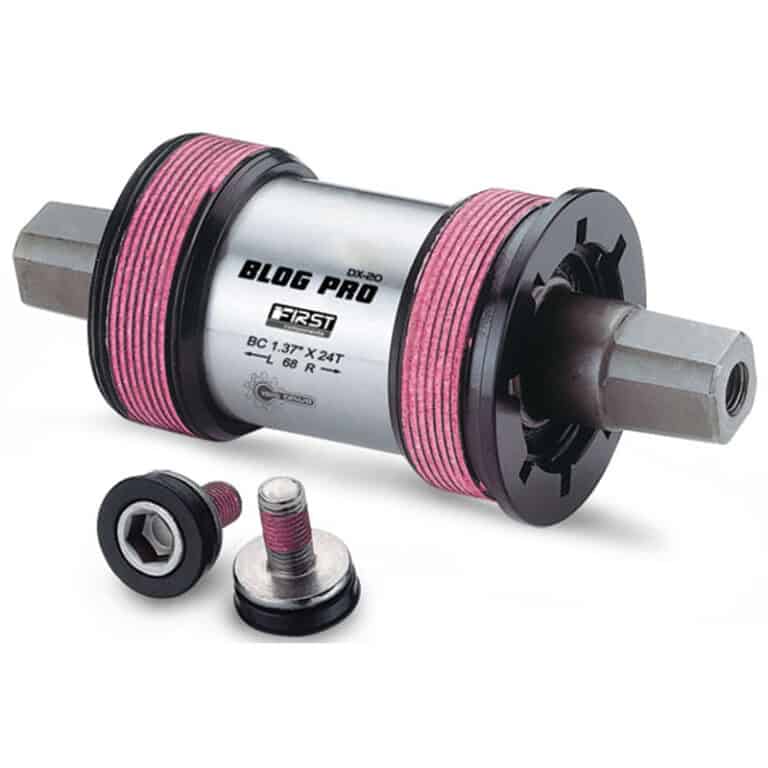

DX-20

➤ Bigger Tapered SCM Spindle
➤ Sealed Bearings Type
➤ SCM Crank Bolts
➤ Oversized Threaded Cups (M48)
➤ Length 68 x 113mm and 129mm
➤ Weight: 592g

Technical Diagram

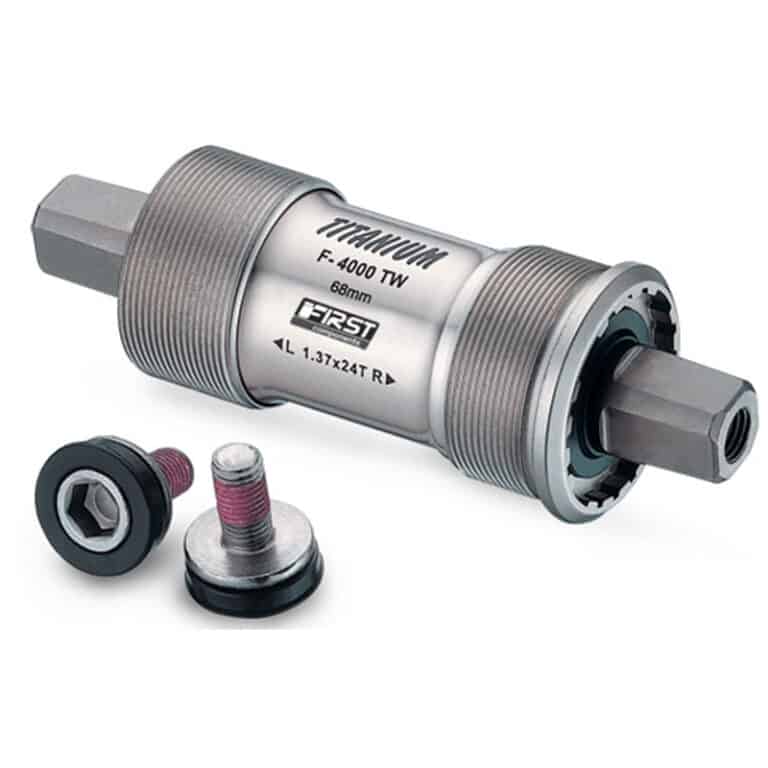

F-4000TW

➤ Titanium 6AL-4V Spindle
➤ Forged Aluminum Cups
➤ 2 Cartridge Sealed Bearings
➤ Weight: 188g

Technical Diagram

NC-99

Patent No. M357419

➤ Threadless Cartridge BB Set
➤ Available for Threadless and Threaded BB Shell
➤ Noise Can Be Reduced Casued by Non-Center Lined BB Shell
➤ Alloy Sleeve and Cups
➤ Weight: 263g

Technical Diagram
